OD-SL Series Outdoor LED Module – P3 | 192×192mm | IP65 with Screw-Lock Design | SMD | Rear Service | Traffic Information Displays & Variable Message Signs | MOQ: 100 pcs

Overview & Key Features

P3 Outdoor LED Modules | 192×192mm | SMD1415 LED Technology | IP65 Weatherproof Structure | Rear Service Outdoor Displays

OD-SL Series Outdoor LED Module – P3 | 192×192mm | IP65 with Screw-Lock Design | SMD | Rear Service | Traffic Information Displays & Variable Message Signs | MOQ: 100 pcs

About this item

•
  P3 Fine Pitch Outdoor LED Modules – P3 Outdoor LED Modules are designed for commercial outdoor LED displays, weatherproof digital signage, building facade LED screens, and fixed outdoor display projects requiring reliable protection, stable image performance, and convenient maintenance.
•
  SMD1415 LED Technology for Outdoor Applications – Featuring SMD1415 LED technology, 3mm pixel pitch, 5000 nits brightness, and 1920Hz refresh rate to provide clear image quality, stable color performance, and dependable operation for professional outdoor LED installations.
•
  IP65 Weatherproof Outdoor Protection – The IP65 protection structure helps resist dust and water exposure, supporting reliable outdoor LED display operation in changing weather conditions.
•
  Rear Service Maintenance Design – The rear service structure provides convenient access for inspection, maintenance, and module replacement, making it suitable for fixed outdoor LED cabinets with rear maintenance space.
•
  Standard 192×192mm Outdoor Module Format – The compact standardized module size supports efficient cabinet integration, flexible LED screen construction, and scalable engineering outdoor projects.
•
  Professional Outdoor Display Applications – Suitable for advertising LED screens, commercial outdoor displays, public information systems, transportation displays, retail outdoor screens, and large-scale fixed outdoor LED projects.

Package Included

Lead Time

•
  OD – SL Series usually ship within 1–3 business days, MOQ 100pcs items in OD-SL Series usually ship within 7–15 business days.
•
  OD – SLG Series and usually ship within 3–5 business days, 192×192mm MOQ 100pcs items in usually ship within 7–15 business days.
•
  OD – PMG Series usually ship within 7–15 business days.
•
  OD – WS Series and OD-WSG Series usually ship within 15–25 business days.

Shipping Note

•
  .
•
  Shipping Policy for OD Series – . Orders will be shipped from local warehouses when stock is available, or directly from China otherwise.
•
  For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
•
  HQ Fulfillment – Standard delivery takes 9–18 days | Express 5–9 days.

Technical Specifications

Structure & Design Features

•
  IP65 Weatherproof Outdoor Structure – The IP65 protection design improves resistance against dust and moisture while supporting stable outdoor LED display operation in changing weather environments.
•

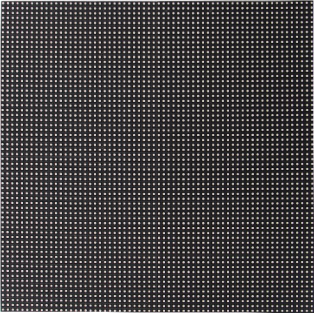

  SMD1415 Fine Pitch Outdoor Platform – The SMD1415 LED technology combined with 3mm pixel pitch provides detailed image performance, stable brightness, and reliable visual output for commercial outdoor display applications.
•

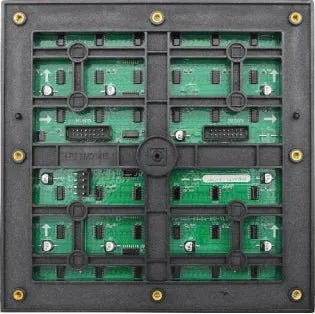

  Rear Service Screw – Lock Module Design – The screw-lock installation structure and rear service design support convenient maintenance access, secure module installation, and efficient replacement for fixed outdoor LED cabinets.
•
  Standardized 192×192mm Outdoor Module Architecture – The compact module format supports efficient cabinet integration, scalable LED screen construction, and engineering project deployment.

Installation Guide

•
  Confirm the cabinet structure, module layout, pixel pitch, receiving card configuration, and power supply requirements before installation.
•
  Install the P3 192×192mm outdoor LED modules according to the cabinet design and ensure each module is securely fixed.
•
  Connect the HUB75 data interface according to the LED display system wiring plan.
•
  Connect the DC 5V power supply correctly and check polarity before powering on the LED display system.
•
  Perform rear – side maintenance when replacing modules or checking system components.
•
  Avoid strong impact, scratching, or improper handling of the LED surface during transportation, installation, and maintenance.

Applications

•
  Commercial Outdoor LED Displays – Fixed outdoor LED screens, advertising displays, and commercial information systems.
•
  Weatherproof LED Screen Projects – Outdoor digital signage, building facade LED displays, and public information displays.
•
  Retail & Transportation Displays – Retail outdoor screens, transportation information displays, and public visual communication systems.
•
  Large – Scale Outdoor LED Projects: Engineering LED displays, commercial outdoor video walls, and scalable fixed installation projects.
