Novastar MCTRL300 Synchronous Independent Controller 1280×1024 Resolution 1.3 Million Loading Capacity

Overview & Key Features

Novastar MCTRL300 Synchronous Independent Controller – Structured Listing HTML (inline-styled per template)

Novastar MCTRL300 Synchronous Independent LED Display Controller – 1× DVI Input, 2× Ethernet Outputs | Up to 1920×1200 Resolution | 1.3 Million Pixel Loading Capacity

Package Included

About this item

•

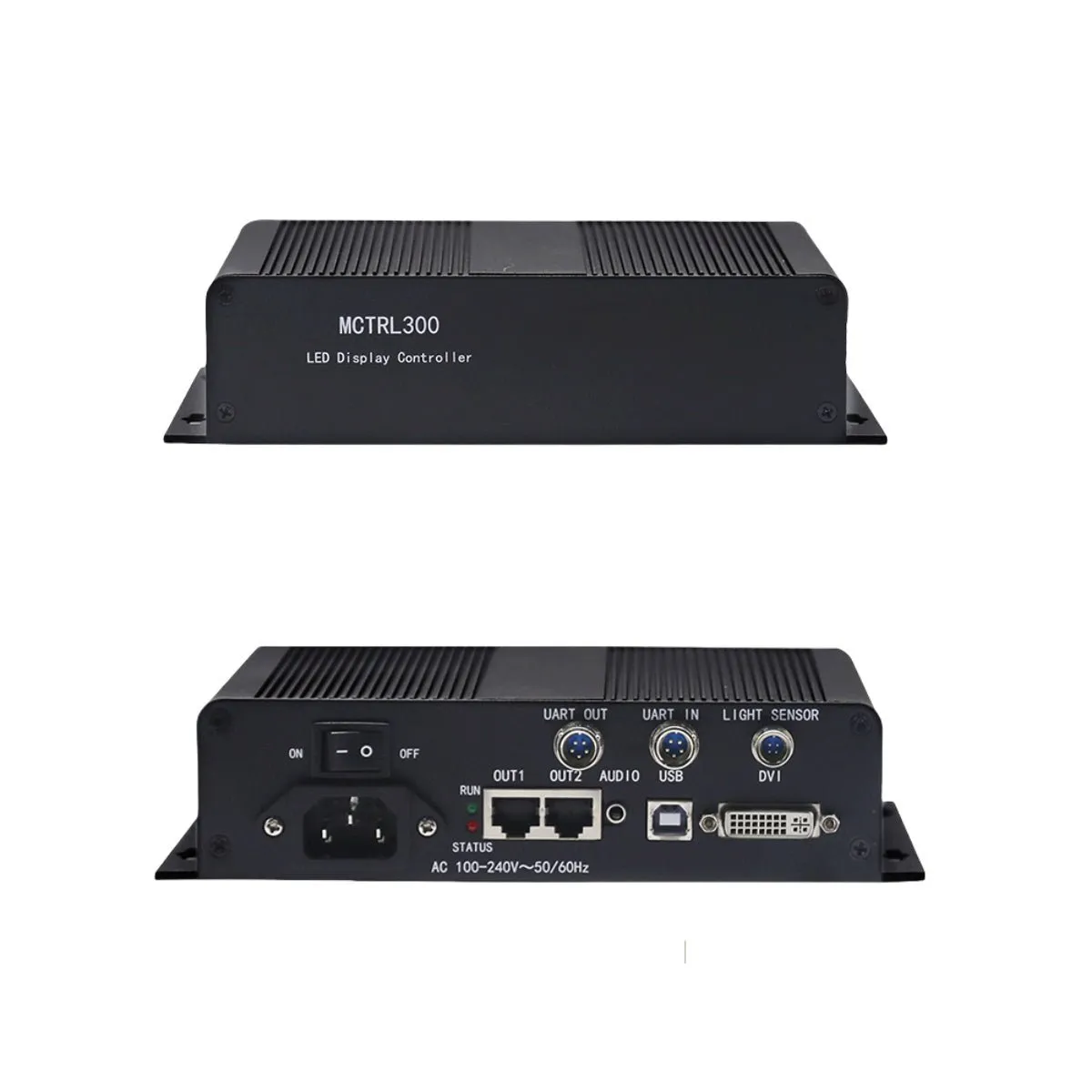

  LED controller with 1× DVI input, 1× audio input, and 2× Ethernet outputs, supporting resolutions up to 1920×1200@60Hz
•
  Pixel – level brightness and chroma calibration with NovaLCT/NovaCLB for consistent image quality
•
  Includes 1× light sensor connector, 1× type – B USB port, and 2× UART cascade ports (up to 20 devices)
•
  Compact design with efficient cooling, ideal for rental and fixed LED display installations
•
  Certified EAC, CE, FCC, IC, PFOS, CB for compliance in multiple markets

Order & Logistics

•
  Lead Time – Typically ships within 2–5 business days
•
  Packing – Cardboard box

•
  Input Ports – 1× DVI, 1× Audio
•
  Output Ports – 2× Gigabit Ethernet
•
  Supported Resolutions – Up to 1920×1200@60Hz
•
  Control Method – Type-B USB, UART cascade (up to 20 units)
•
  Power Supply – AC 100–240V
•
  Operating Temperature – −20 °C to +60 °C

Technical Specifications

Applications

•
  Fixed LED billboards
•
  Rental stage LED screens
•
  Indoor/outdoor advertising
•
  Conference / exhibition displays
