Tour Outdoor Rental LED Display 3.9/4.8/5.9 mm Pixel Pitch in 500x500mm Aluminum Cabinet

Overview & Key Features

Tour Indoor Rental LED Display 3.9/4.8/5.9 mm Pixel Pitch in 500x500mm Aluminum Cabinet

Unit Price Here is Per One Square Meter, Standard Version

DO NOT include accessories (like Suspension beam, bottom beam, flight case, main power cord, main network cable, spare parts )

Features

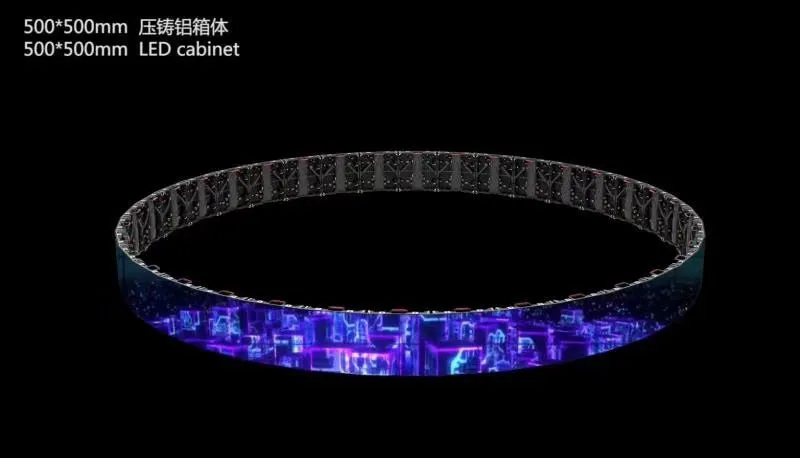

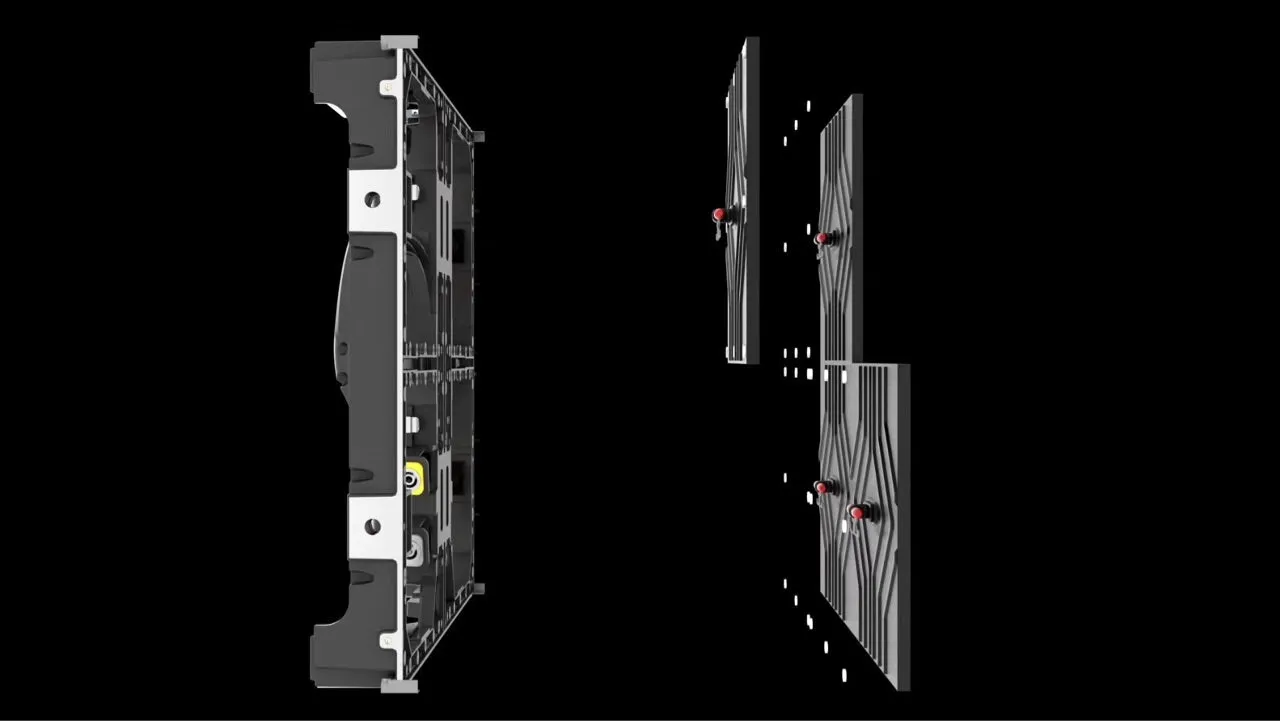

* Standard 500x500mm Aluminum LED Cabinet.* Outdoor IP65 Aluminum LED Cabinet* Straight and Arc Compatible: With radian adjusting lock, the cabinet can be arc joined within +/-10° the max, can get concuve or convex shape screen.* Back Servicable: Accessable from back

Specification:PART NUMBER BREAKDOWN TO3.9： TO【Series Code : Tour Outdoor 】- 3.9【Pixel Pitch: 1.95mm】 Part No.： TTO3.9 | TO4.8 | TO5.9Pixel Pitch： 3.9mm | 4.8mm | 5.9mmLED：SMD1921 | SMD1921 | SMD1921LED Brand：Standard: Kinglight/Huaguang etc. Premium:Nationstar Pixel Configuration：1R 1G 1B Wave Length：R:620~625nm, G:520~530nm, B:460~475nm Module Size：250*250mm Module Resolution： 64*64 I 52*52 I 42*42Module Pixles：4096dots | 2704dots | 1764dots Scan： 1/16 | 1/13 | 1/7Viewing Distance： >4m | >5m | >6mCabinet Type：Die-casting Aluminum Cabinet Size：500*500*75mm Module Qty./Cabinet：4 Cabinet Qty./㎡：4 Cabinet Resolution：128*128 | 104*104 | 84*84Cabinet Pixles： 16384dots | 10816dots | 7056dotsPixel Density ： 65,536dots | 43,264dots | 28,224dotsPower Consumption ：Max.640W/㎡ Avg.200W/㎡ Brightness：4500cd/㎡ Contrast Rate ：3000:1 Color Depth：16bit Grey Level：16384 Refresh Frequency：>3840HZ Driving IC : MBI/ICN Color Uniformity : ≥97% Viewing Angle: H:160deg. V:160deg. Blind Spot Rate: ≤0.0003 Life span: ≥100,000 hours Cabinet Weight: 9.0Kgs Protection Rating: IP65 Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F) Operating Humidity : 10％ ～ 90％ Input voltage: AC100-240V Power Supply: Standard: CE*1 / Premium:UL CE MeanWell *1 Controlling System: Nova Maintainance: Front / Rear Installation; Front/Back Maintenance

NOTE: The Aluminum Cabinet Housing may not be different as pictures showed, this can be confirmed when place the order.
