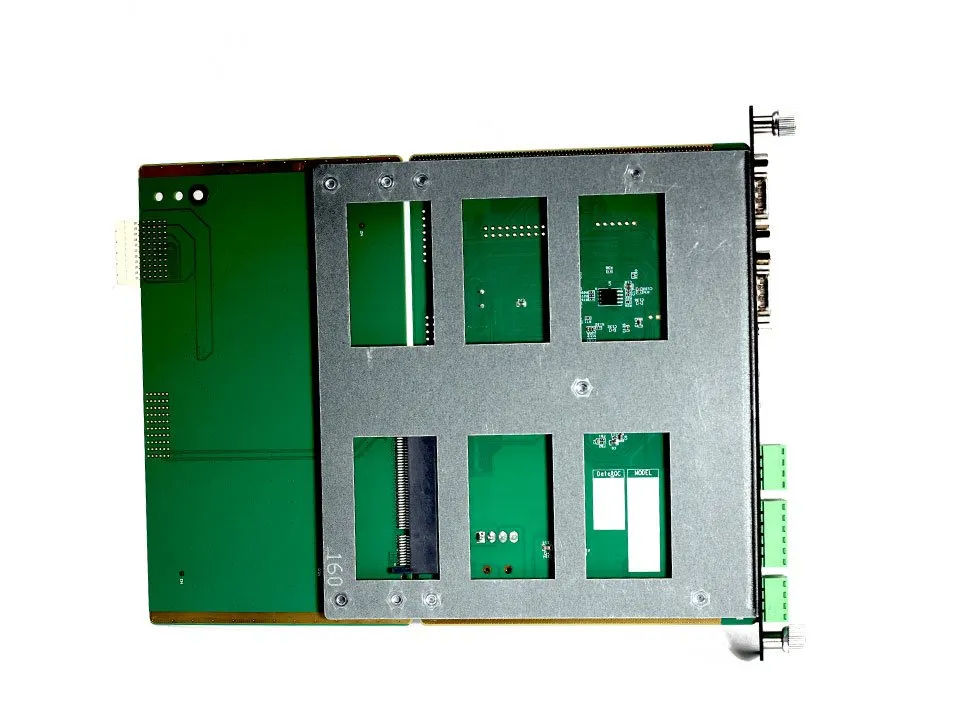

Novastar H_STD I/O card

Novastar H_STD I/O card
Novastar H_STD I/O card
Novastar H_STD I/O card
Novastar H_STD I/O card
Novastar H_STD I/O card
Novastar H_STD I/O card
Novastar H_STD I/O card
Roll over image to zoom in
Click to open expanded view

$225.00

In stock

H-STD I/O Card for LED display control system repair, replacement and spare parts. Confirm compatibility before ordering.

Wishlist
Categories: , , , , Tags: , , , Brand:

Description

This card can be installed into the input card slots.
2x COM
Programmable RS422/RS485/RS232 ports that are used to control the devices that adopt RS422/RS485/RS232 protocol
1x ETHERNET
-Control the device connected to this card.
-10/100Mbps self-adaptive
-TCP/IP protocol and UDP/IP protocol supported
3x I/O
-Trigger the execution of the function requirements via programming.
-Input and output modes supported
-Pins 1, 2 and 3 can be set to either the input or output, and pin G is the
common grounding pin for pins 1, 2 and 3.
3x RELAY OUT
-Connect to the relay to control the power on and off the connected
device.
-Voltage: 30 VDC, current: 3A at maximum
-Six pins are divided into three groups, which can be connected or
disconnected via programming.
3x IR OUT
-Programmable infrared control supported
-Pins 1, 2 and 3 are used for infrared emission, and pin G is the common
grounding pin for pins 1, 2 and 3.
Specifications:
Weight: 400 g
Dimensions: 193 mm × 247.12 mm × 21.15 mm
Power consumption: 1.2 W

NOVASTAR H_STD I compatibility and replacement notes

Use the Novastar H_STD I/O card as a NovaStar LED display control accessory for processor expansion, signal input/output or control system replacement projects.

  • Confirm the host controller or processor model before ordering.
  • Check input/output interface requirements and project signal routing.
  • Send product photos or the current model label to REILED for compatibility confirmation.

Before ordering, you can send REILED the current controller model, receiving card photo, LED cabinet wiring photo and target screen resolution. We can help check compatibility before shipment.

Related buying paths: LED receiving cards, LED sending cards, LED video processors and the receiving card compatibility guide.

FAQ

Can this model replace my existing NovaStar part?
In most replacement projects, the exact model, connector layout and LED screen configuration must be checked together. Please compare the current part label before placing an order.

Is this suitable for rental LED display spare parts?
Yes, many LED display control cards and processors are kept as spare parts for rental cabinets, event screens and urgent maintenance work.


Weight0.5 kg
Dimensions20 × 25 × 2 cm
Manufacturer

Nova star
