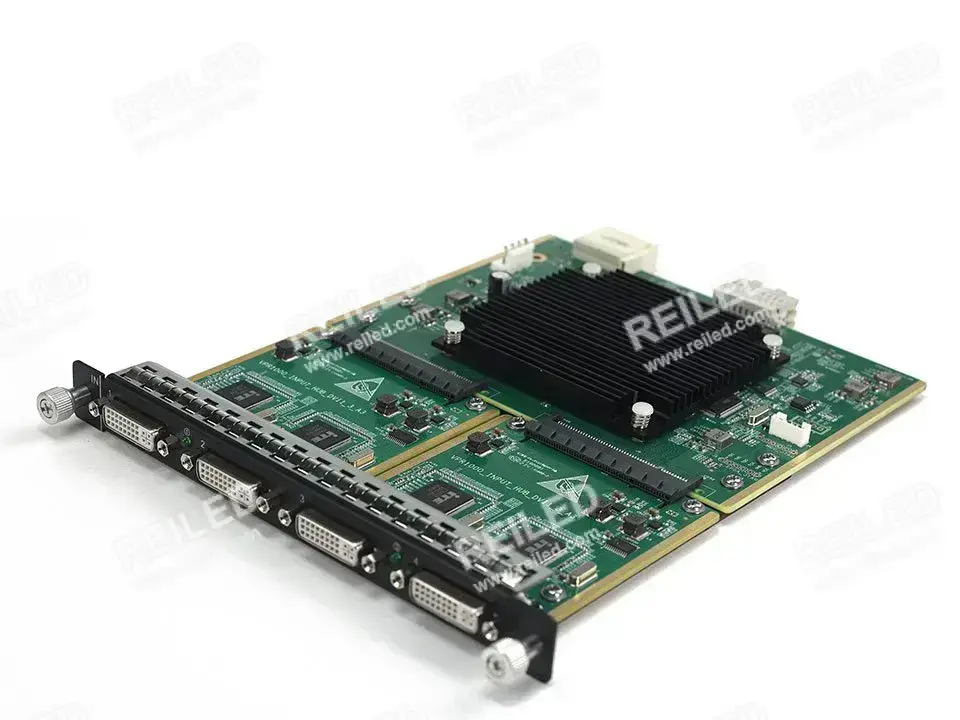

Novastar H_4xDVI input card

Description

Novastar H_4xDVI input card Support for single link and dual link input modes, 10-bit input source and 144Hz input
HDCP 1.4 compliant
Does not support interlaced signal input.
Single link mode:

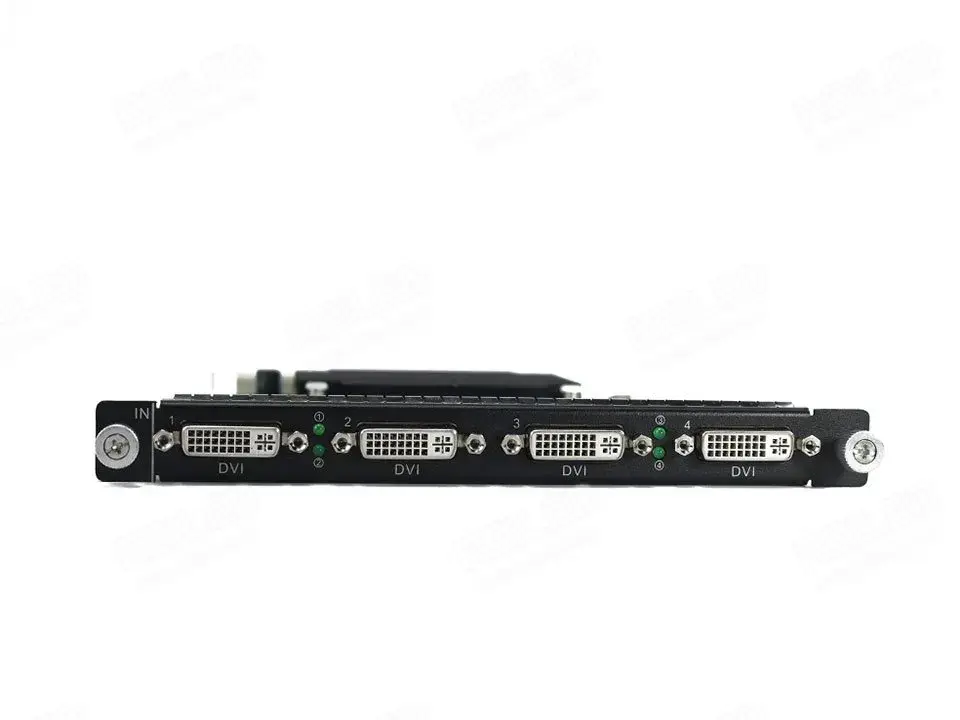

. Four DVI connectors are all used for input.
.Each connector supports the maximum resolution of 2048×1152@60Hz and the minimum resolution of 800×600@60Hz.
.Custom resolutions:
Max. width: 2560 pixels (2560×983@60Hz)
Max. height: 2560 pixels (884×2560@60Hz)
Dual link mode:
.Connectors 2 and 4 are used for input, and connectors 1 and 3 are unavailable.
.Each connector supports the maximum resolution of 3840×1080@60Hz and the minimum resolution of 800×600@60Hz.
.Custom resolutions:
Max. width: 3840 pixels (3840×1202@60Hz)
Max. height: 3840 pixels (1092×3840@60Hz)
Status LEDs:
On: The input source is accessed normally.
Off: No input source is accessed or the input source is abnormal.
Specifications:
Weight: 550 g
Dimensions: 193 mm × 247.12 mm × 21.15 mm
Power consumption: 9.4 W
