How to verify compatibility for Novastar H_2xAudio input 2xAudio output card?

REILED technical engineers can confirm driver IC compatibility, pin definition, receiving card configuration, and cabinet fit before ordering.

What is the wholesale lead time and warranty for Novastar H_2xAudio input 2xAudio output card?

Standard models are in factory stock and dispatched worldwide within 24-48 hours with 2-year warranty support.

Does REILED provide configuration files (RCFG) and wiring diagrams?

Yes, our engineering team provides complete NovaStar, Colorlight, and Linsn RCFG configuration files and technical support.

NovaStar H_2xAudio I/O LED Control System Part

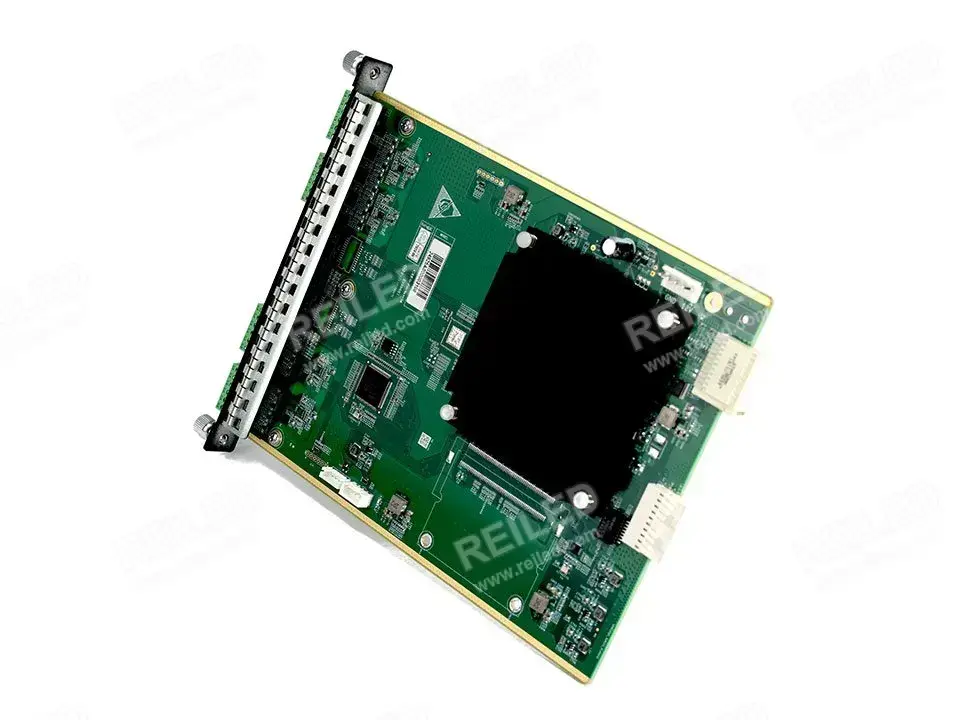

Name: Novastar H_2xAudio input 2xAudio output card
Brand: NovaStar
SKU: RL-10944
Price: 620.00 USD
Availability: InStock
Rating: 4.9 (39 reviews)

Description

Single channel: 4x phoenix audio inputs, 4x phoenix audio outputs
Dual channel: 2x phoenix audio inputs, 2x phoenix audio outputs
-Audio sampling rate: 48 kHz
-When the single channel balanced audio is used as the audio source, both
the input and output audio channels are four.
-When the dual channel balanced audio is used as the audio source, both the
input and output channels will be halved.
-Output the accompanied audio of the video input connector and the audio of
the audio input card.
-Output volume adjustment and one-click mute function supported
-Switching between the single channel and dual channel
-Audio output delay supported
Specifications
-Weight: 550 g
-Dimensions: 193 mm × 247.12 mm × 21.15 mm
-Power consumption: 6 W

Data Transfer Rate and Compatibility Notes

Data transfer rate: Actual data transfer performance depends on the LED controller configuration, sending card, receiving card, network adapter, Ethernet/Wi-Fi/4G connection, firmware, scan mode and screen resolution. Please confirm compatibility with your LED display control system before ordering.
