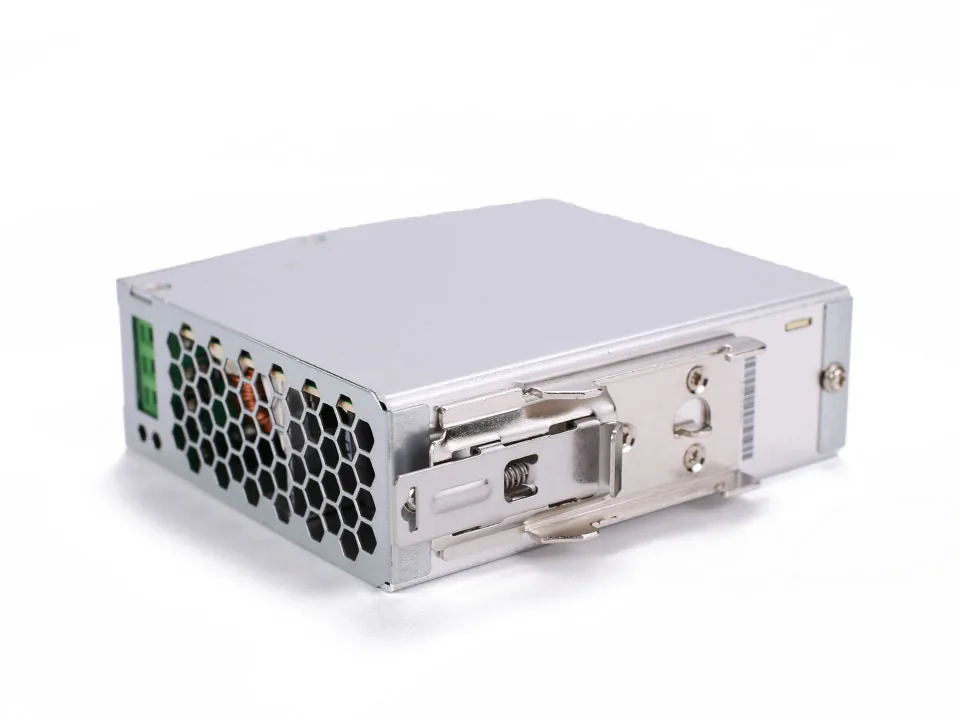

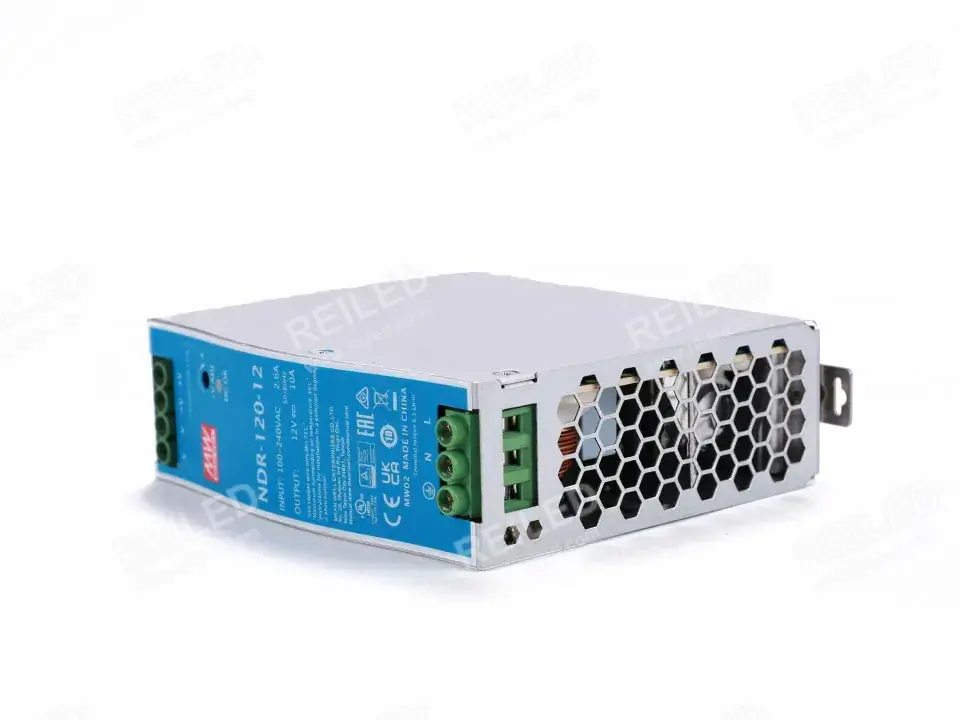

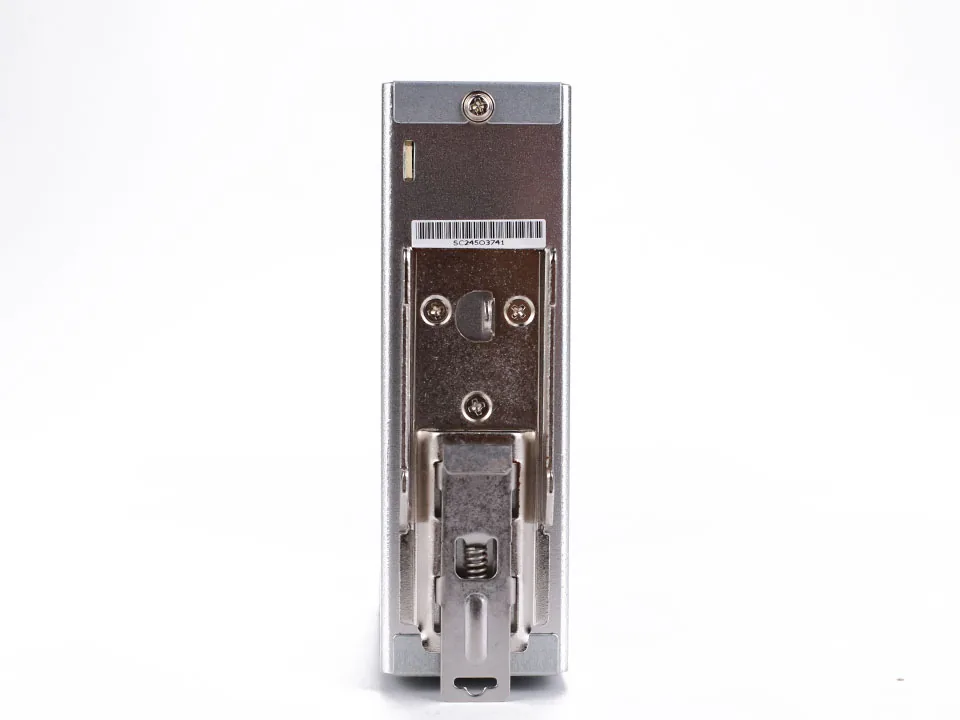

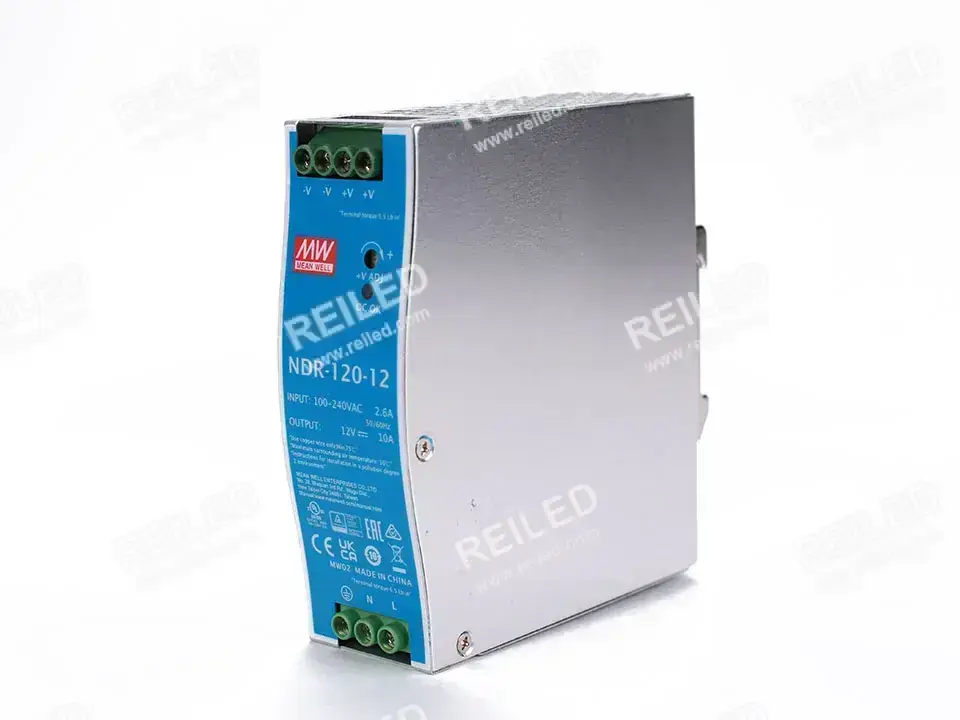

Meanwell NDR-120-12 Industrial Rail Power

Meanwell NDR-120-12 Industrial Rail Power
Roll over image to zoom in
Click to open expanded view

$23.00

In stock

MEANWELL NDR-120-12 DIN rail power supply, 12V 10A / 120W class, 40mm slim body for cabinet installation.

Wishlist
SKU: NDR-120-12 Categories: , , , , Tags: , , Brand:

Specifications

ManufacturerMEANWELL
ModelNDR-120-12
Output12V 10A 120W
Voltage tolerance±2%
Input voltage range90-264VAC / 127-370VDC
Frequency47-63Hz
Efficiency85.5%
MountingDIN rail TS-35/7.5 or TS-35/15
Overload105-130% rated output power
Over voltage14-17V
Working temperature-20 to +70°C class range
Size40 × 125.2 × 113.5mm
Weight0.6kg

Ordering Check

  • Confirm the exact model number before replacing an existing unit.
  • Check voltage, interface, loading capacity and cabinet compatibility before purchase.

Additional information

Weight0.6 kg
Dimensions12.5 × 12 × 4 cm
Manufacturer

MEANWELL

Model

NDR-120-12

Output

12V 10A 120W

Voltage tolerance

±2%

Input voltage range

90-264VAC / 127-370VDC

Frequency

47-63Hz

Efficiency

85.5%

Mounting

DIN rail TS-35/7.5 or TS-35/15

Overload

105-130% rated output power

Over voltage

14-17V

Working temperature

-20 to +70°C class range

Size

40 × 125.2 × 113.5mm

Weight

0.6kg
