Meamwell LRS-350-24 300W 24V Power

Meamwell LRS-350-24 300W 24V Power
Roll over image to zoom in
Click to open expanded view

$28.00

In stock

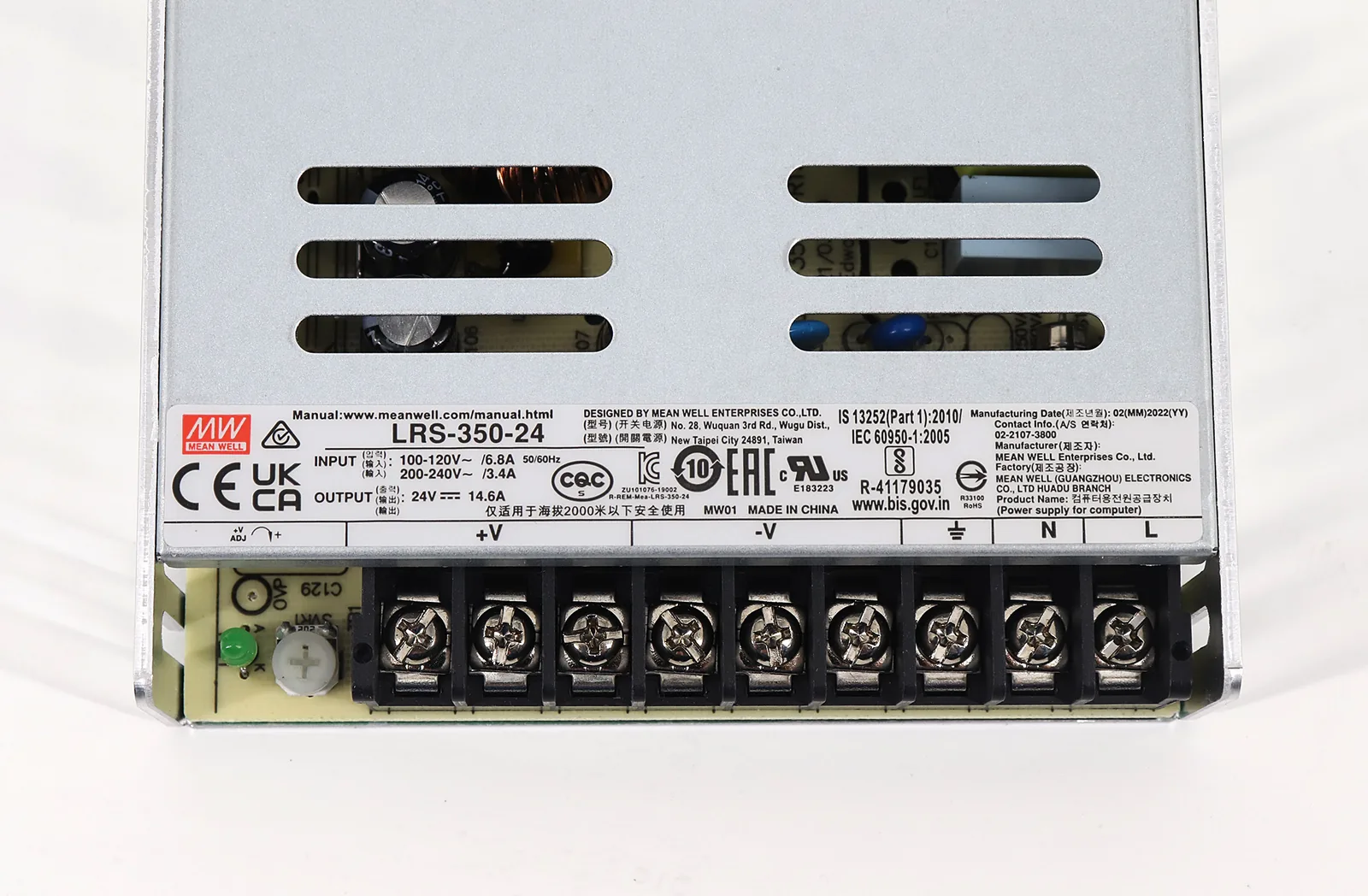

MEANWELL LRS-350-24 24V 14.6A / 350W class enclosed power supply with 1U low-profile design and fan cooling.

Wishlist
SKU: LRS-350-24 Categories: , , , , Tags: , Brand:

Specifications

ManufacturerMEANWELL
ModelLRS-350-24
Output24V 14.6A 350W
Voltage tolerance±1%
Input voltage range90-132VAC / 180-264VAC by switch, 240-370VDC
Frequency47-63Hz
Efficiency88%
CoolingBuilt-in DC fan with fan speed control
ProtectionsShort circuit / overload / over voltage / over temperature
Working temperature-25 to +70°C class range
CertificationsUL / CB
Size215 × 115 × 30mm
Weight0.79kg

Ordering Check

  • Confirm the exact model number before replacing an existing unit.
  • Check voltage, interface, loading capacity and cabinet compatibility before purchase.

Additional information

Weight0.8 kg
Dimensions21.5 × 11.5 × 3 cm
Manufacturer

MEANWELL

Model

LRS-350-24

Output

24V 14.6A 350W

Voltage tolerance

±1%

Input voltage range

90-132VAC / 180-264VAC by switch, 240-370VDC

Frequency

47-63Hz

Efficiency

88%

Cooling

Built-in DC fan with fan speed control

Protections

Short circuit / overload / over voltage / over temperature

Working temperature

-25 to +70°C class range

Certifications

UL / CB

Size

215 × 115 × 30mm

Weight

0.79kg
