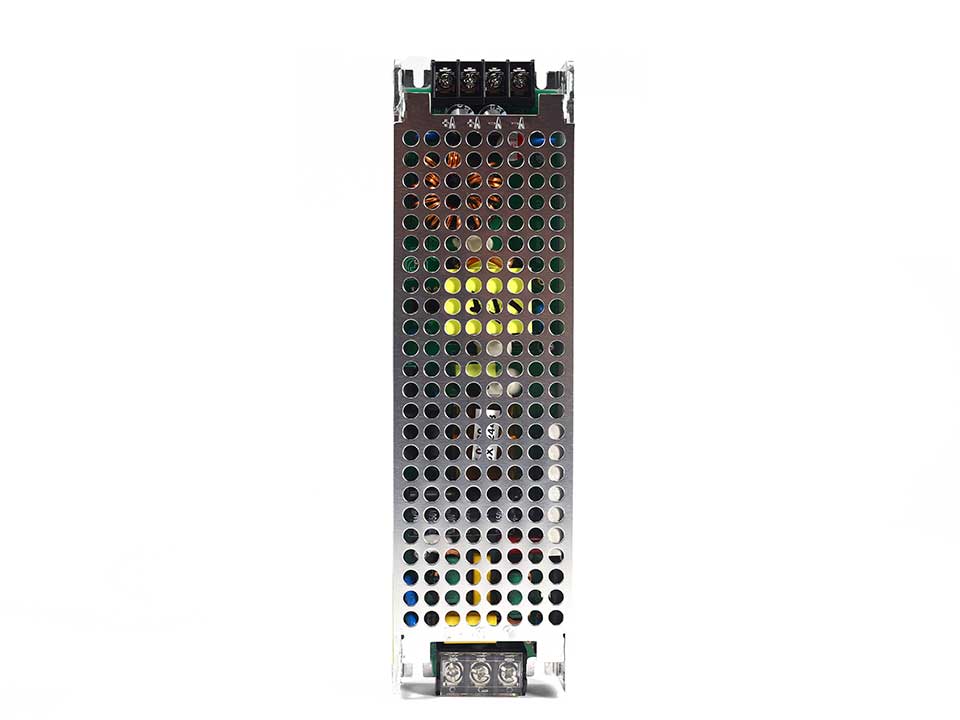

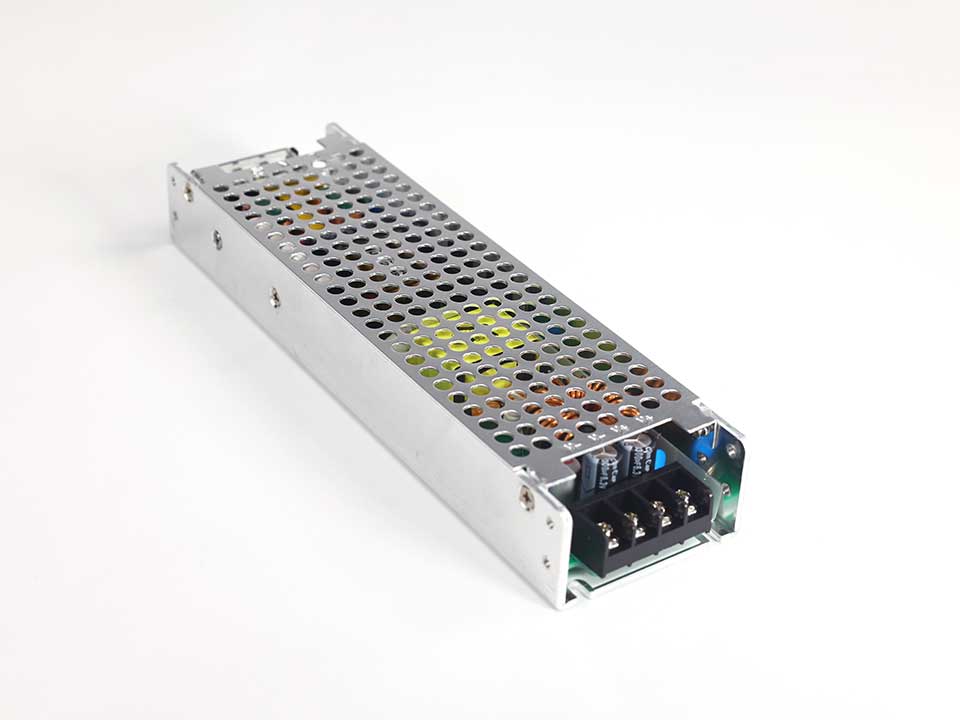

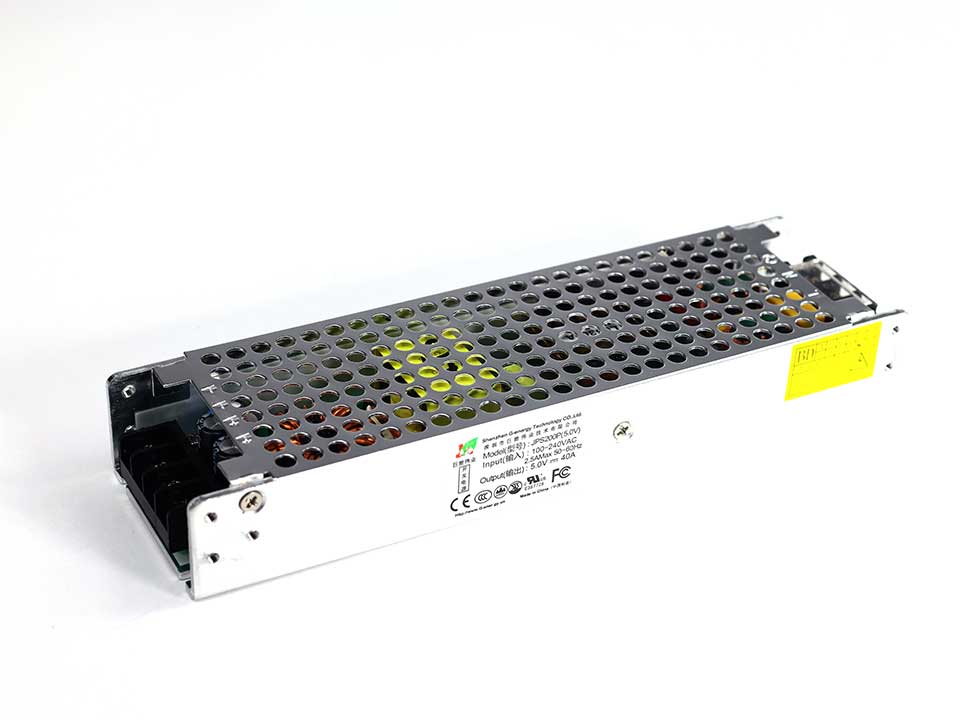

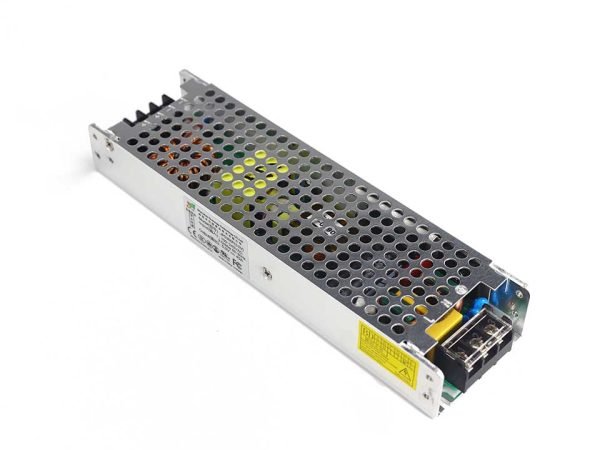

G-energy JPS200P 5.0V LED Power

G-energy JPS200P 5.0V LED Power
G-energy JPS200P 5.0V LED Power
G-energy JPS200P 5.0V LED Power
G-energy JPS200P 5.0V LED Power
G-energy JPS200P 5.0V LED Power
Roll over image to zoom in
Click to open expanded view

$26.00

In stock

Description Output power: 5V 200W Max Leakage current: < 1mA (VIN: 230) Working temperature: – 30 ℃ ~ 50 ℃ Cooling mode: self cooling conversion efficiency:…

Wishlist
Categories: , , , , Tags: , , , , Brand:

Description

Output power: 5V 200W Max
Leakage current: < 1mA (VIN: 230)
Working temperature: – 30 ℃ ~ 50 ℃
Cooling mode: self cooling
conversion efficiency: 89%
Storage temperature: – 40 ~ 80 ℃
Input voltage: 100-240Vac, 47-63Hz
Insulation voltage: I / P-O / P: 3.0kvac; I / p-fg: 1.5kVac; O / p-fg: 0.5kvac
Safety standard: gb4943, en60950
Protection function: input under voltage, overload protection, short circuit protection
Power factor: 0.95 @ 230VAC
Size: l*w*h = 140*59*30mm

G-energy JPS200P 5.0V compatibility and buying checks

Primary role5V 200W LED display switching power supply for module and cabinet power replacement.
Common useG-energy JPS200P 5.0V, JPS200P LED power supply, 5V 40A power replacement.
Compatibility focusCheck output voltage, current, physical size, terminal layout and cabinet power wiring.

Before ordering

  • Confirm the exact model printed on the old part or project BOM.
  • Compare signal input/output ports, loading capacity, software version and wiring requirements.
  • For replacement projects, send photos of the old part and LED cabinet wiring if compatibility is unclear.
