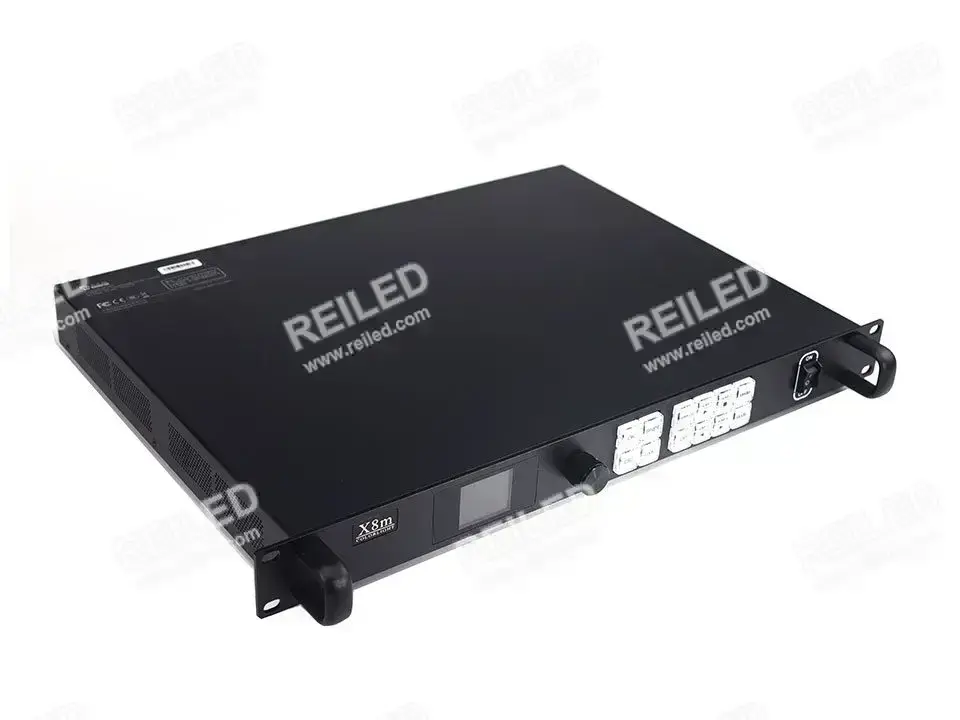

Colorlight X8M LED Controller

Description

Colorlight X8m is an Ultra-4K LED video controller with powerful video signal input andprocessing abilities. It is so versatile, offering flexible screen control and high-qualityimage display portfolios. The device supports 4K and 2K video signal inputs and LAN port output mode.

Product Overview
Type: Ultra 4K LED video controller with 5.24 million pixels processing capacity
Certifications: CE, FCC, IC, UKCA
Dimensions: 482.6mm (W) × 44.0mm (H) × 360.0mm (D) (1U rack-mountable)
Power Supply: AC 100-240V, 50/60Hz | Max Power Consumption: 52W

Input & Video Processing
4K Inputs (Up to 4096×2160@60Hz):
1× DP 1.2 (supports custom resolutions up to 8192×1080@60Hz)
1× HDMI 2.0 (backward compatible with HDMI 1.4/1.3)
2K Inputs (4× HDMI 1.4): Max 1920×1200@60Hz per port

Multi-Window Support
Up to 6 independent windows (layered overlap)
Real-time cropping & resizing (min. 64×64 window size)
Genlock Synchronization: Supports internal V-Sync, auto-genlock, and 3D sync (optional)
3. Output & Load Capacity
8× Gigabit Ethernet Ports:
Total Load Capacity: 5.24M pixels (8-bit @60Hz)
Per Port: Up to 655K pixels (8-bit @60Hz)
Max Resolution: 16,384×8,192 pixels
Redundancy Support & 100m CAT5e cable compatibility

Audio & Control
Audio I/O:
1× 3.5mm audio input (supports HDMI/DP audio decoding)
1× 3.5mm audio output
Control Interfaces:
USB (for PC control/cascading)
RS232 (RJ11) for central control
LAN for IP-based management
Mobile app support

Additional Features
Color & Brightness Management:
18-bit+ grayscale, custom color gamut
Adjustable brightness/color temperature
USB Playback:
Supports NTFS/FAT32/exFAT drives
Video Formats: MP4, AVI, MKV (H.264/H.265), etc. (up to 4K@60Hz)
Image Formats: JPEG, PNG, BMP (up to 4096×2160)
128 Preset Scenes for quick switching
System Requirements (PC Control Software)
OS: Windows Server 2016+
CPU: Dual-core 2.5GHz+
RAM: 8GB+ | SSD: 150GB+

Key Advantages
.4K/2K Multi-Input – Flexible signal switching (DP + 5× HDMI)
.Massive Pixel Processing – 5.24M pixels total load for large LED walls
.Multi-Window & Layer – Supports 6 overlapping windows with real-time edits
.Low-Latency Genlock – Frame-accurate synchronization for live events

Colorlight X8M controller notes

Before ordering this product for an LED display repair or upgrade, confirm the current controller chain, receiving card system, cabinet layout, module parameters, and available configuration files. This helps reduce wrong-part orders and speeds up setup after delivery.

• Colorlight compatibility guide
• LEDVISION setup FAQ
• Ask REILED to check compatibility before payment

FAQ

What should I confirm before ordering?

Confirm the current model, screen resolution, cabinet layout, connector type, software or configuration file, and photos of the existing part.

Can REILED help check compatibility?

Yes. Send photos and project details before payment so REILED can compare the correct replacement or compatible alternative.
