Colorlight X4M LED Video Controller

Colorlight X4M LED video controller product image

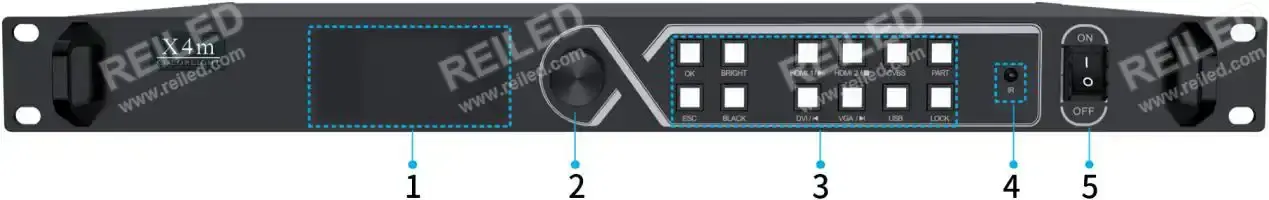

Front panel of Colorlight X4M LED video controller
Rear panel of Colorlight X4M LED video controller

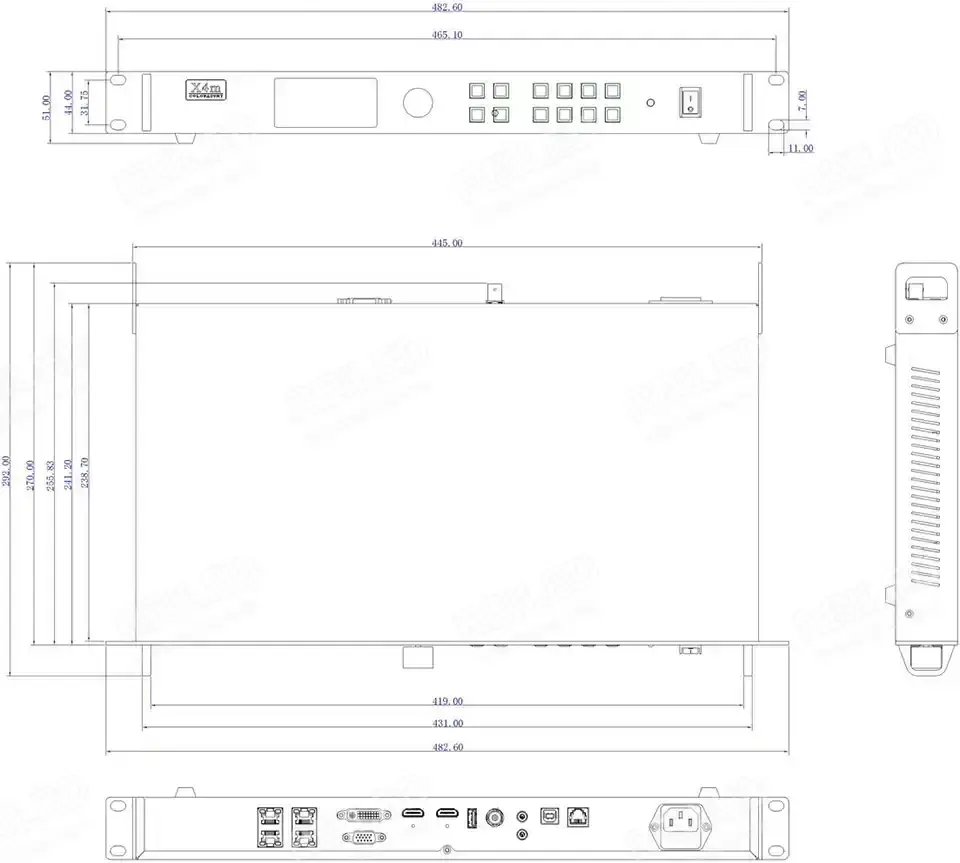

Dimension drawing of Colorlight X4M LED video controller
Roll over image to zoom in
Click to open expanded view

$195.00$250.00 (-22%)

In stock

Colorlight X4M LED Video Controller for control system replacement in LED display projects. REILED helps check controller model, screen resolution, input source, receiving card model and cabinet wiring, stock and fit before ordering.

Wishlist
SKU: X4M Categories: , , , Tags: , Brand:

The Colorlight X4M LED Video Controller is the perfect choice for professionals who need high-quality images and flexible control options. This powerful device supports up to 1920×1080 HD digital signals, various types of HD digital interfaces and provides arbitrary zooming and clipping of video sources. It also has 4 Gb Ethernet port outputs to handle a maximum resolution of 3840 pixels in width and 2000 pixels in height. Furthermore, the device enables USB flash drive content playback, so you can enjoy digital media directly from your USB storage devices. To make this device even more impressive, it comes with many practical features that make it suitable for small LED display applications. Get this reliable and high-performance video controller today and upgrade your LED display system with ease!

Input
. Input resolution: max 1920×1080@60Hz.
. Signal sources: 2×HDMI1.4, 1×DVI, 1×VGA, 1×CVBS.
. U-disk interface：1×USB.
Output
. Loading capacity: 2.6 million pixels.
. Maximum width is 3840 pixels or maximum height is 2000 pixels.
. 4 Gigabit Ethernet output ports.
. Supports Ethernet port redundancy
Audio
. Input: 1×3.5mm.
. Output: 1×3.5mm，support HDMI and DP audio outputs.
Function
. Supports switching, clipping and zooming.
. Supports screen offset.
. Supports screen adjustment: contrast, saturation, chroma, brightness compensation and sharpness adjustment.
. Supports convert Limit Range to Full Range input color space.
. Supports send and read back screen correction factor, advanced stitching.
. Supports HDCP1.4.
. Supports Precise Color Management.
. Supports Better Gray Level at Low Brightness, can effectively maintain the complete display of grey scale under low brightness.
. 16 scene presets.
. Play back pictures and videos from U-disk.
. OSD for U-disk playback and screen adjustment (Remote controller optional).
Control
. USB port for control or cascading.
. RS232 protocol control.
. Infrared remote control (optional).

Colorlight X4M compatibility and buying checks

Primary roleLED video controller positioned above X2M for projects needing more output capacity.
Common useColorlight X4M, X4M Colorlight, LED video controller replacement.
Compatibility focusCheck output capacity, input plan, receiving card compatibility and LEDVISION configuration.

Before ordering

  • Confirm the exact model printed on the old part or project BOM.
  • Compare signal input/output ports, loading capacity, software version and wiring requirements.
  • For replacement projects, send photos of the old part and LED cabinet wiring if compatibility is unclear.

Related REILED support

  • Receiving cards and sending cards
  • NovaStar LED controller hub
  • Colorlight LEDVISION setup guide
  • LED display power supply datasheets
  • Ask REILED to check compatibility

Colorlight X4M Search and Setup Notes

X4M is usually selected for LED display projects that need a higher-capacity Colorlight video controller. The main decision is whether X4M capacity and port layout fit the LED screen better than X2M or higher Colorlight controllers.

Common use and model match

Colorlight X4M, X4M LED video controller, Colorlight X4M specs and price.

What to confirm before ordering

  • Confirm input source, output capacity and LEDVISION software workflow.
  • Compare X2M and X4M if the project is close to the loading-capacity boundary.
  • Send the screen resolution and receiving-card system before payment if replacing an old controller.

Related REILED pages

  • Colorlight Z5 LED Video Controller
  • Colorlight LEDVISION setup guide
  • Ask REILED to compare Colorlight models

FAQ

Is Colorlight X4M better than X2M?

Only when the project needs the higher capacity or port plan of X4M. Confirm screen resolution first.

Can REILED help check LEDVISION setup?

Yes. Share controller model, receiving card model and screen configuration details.

Colorlight X4M LED Video Controller for LED Display Control Projects

The Colorlight X4M LED Video Controller is used for LED display control, replacement maintenance, and spare-part preparation. It helps buyers match the correct part for repair jobs, rental screens, and new LED display system setup.

Before ordering, confirm resolution loading, input/output ports, software support, and receiving card compatibility. REILED can help check the model against your LED module, cabinet, receiving card, sending card, or processor configuration before shipment.

Common Purchase Checks

  • Confirm the exact model number and control system brand.
  • Check connector layout, supported software, and installation position.
  • Keep spare units for rental screens, repair jobs, and urgent maintenance.

Need help confirming Colorlight X4M LED Video Controller?

Before ordering this LED display controller, send the controller model, screen resolution, input source, receiving card model and cabinet wiring. REILED can help confirm compatibility for repair, replacement or new LED display projects.

Contact REILED for a compatibility check or browse related LED video controllers.
