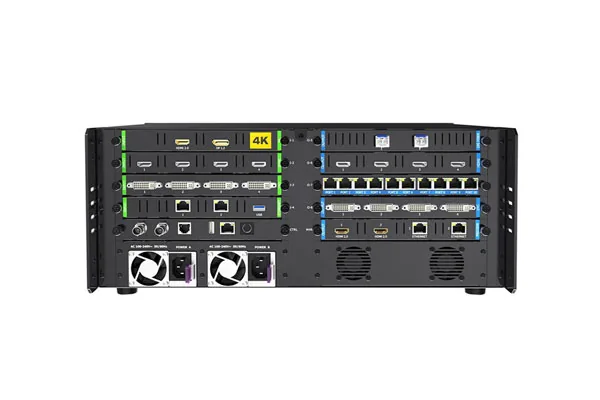

Colorlight X100 Pro video splicer rear and module view
Roll over image to zoom in
Click to open expanded view

$2,900.00

In stock

Colorlight X100 Pro 4U video splicer for LED wall control rooms, stage screens, multi-window display and processor replacement. REILED helps confirm inputs, outputs and screen loading.

Wishlist
SKU: REILED-COLORLIGHT-X100-PRO-4U Categories: , , Tags: , , Brand:

Colorlight X100 Pro 4U Video Splicer

The Colorlight X100 Pro 4U is a modular LED video wall splicer that combines high-performance video processing and LED display control. It is suitable for ultra-wide LED screens, fine-pitch LED walls, control rooms, broadcast centers, stage rental projects, indoor expos and other applications requiring multi-window splicing and stable large-resolution control.

Key Features

  • Modular 4U video splicer platform for flexible input and output board combinations.
  • Integrated LED transmitter output with Gigabit Ethernet and 10G optical fiber output options.
  • Single transmitter loading capacity up to 6.5 million pixels; X100 Pro 4U system class loading up to 26 million pixels depending on board configuration.
  • Supports multi-layer display, window roaming, free splicing, cross-board and cross-port operation.
  • Supports independent cropping, scaling, EDID management, Genlock, moving subtitles, input source logo and ultra-HD background images.
  • Supports input frame rates from 23.98Hz to 144Hz and output frame rates from 23.98Hz to 120Hz, with custom output frame-rate options.

Specification Reference

BrandColorlight
ModelX100 Pro 4U
Product typeLED video wall splicer / LED display video processor
Rack unit4U
Maximum loading capacityUp to 26,000,000 pixels, depending on output board configuration
Input board capacityUp to 4 input boards
Output board capacityUp to 4 output boards
High-resolution input optionsHDMI 2.0, DP1.2, 12G-SDI, HDMI 1.4, DVI, VGA, CVBS, 3G-SDI, IP and central-control board options
Output options10 × 1G Ethernet ports, 4 × 5G Ethernet ports, 2 × 10G fiber ports, HDMI 2.0, HDMI and DVI output board options
Single-board output referenceHDMI 1.4 / DVI board up to 4 × 1920 × 1200 @ 60Hz; HDMI 2.0 board up to 4096 × 2160 @ 60Hz
Video processingMulti-window display, roaming, splicing, cross-board/cross-port control, independent cropping and scaling
MonitoringPreview and monitoring board support for input source preview and output monitoring
Chassis size483.0 × 177.8 × 406.1 mm
WeightApprox. 13 kg

Ordering and Compatibility Checks

Before ordering, confirm the required rack-unit version, input board type, output board type, total pixel load, Ethernet/fiber output requirement, receiving-card system and project wiring plan. For replacement or upgrade projects, send the current processor model, screen resolution, cabinet layout and existing configuration information before payment.

Compatibility and buying check

For this LED video splicer, confirm the input source, output loading, multi-window/splicing requirement, screen resolution and receiving-card control path before ordering. REILED can help check whether this product fits your repair, replacement or new LED display project.
