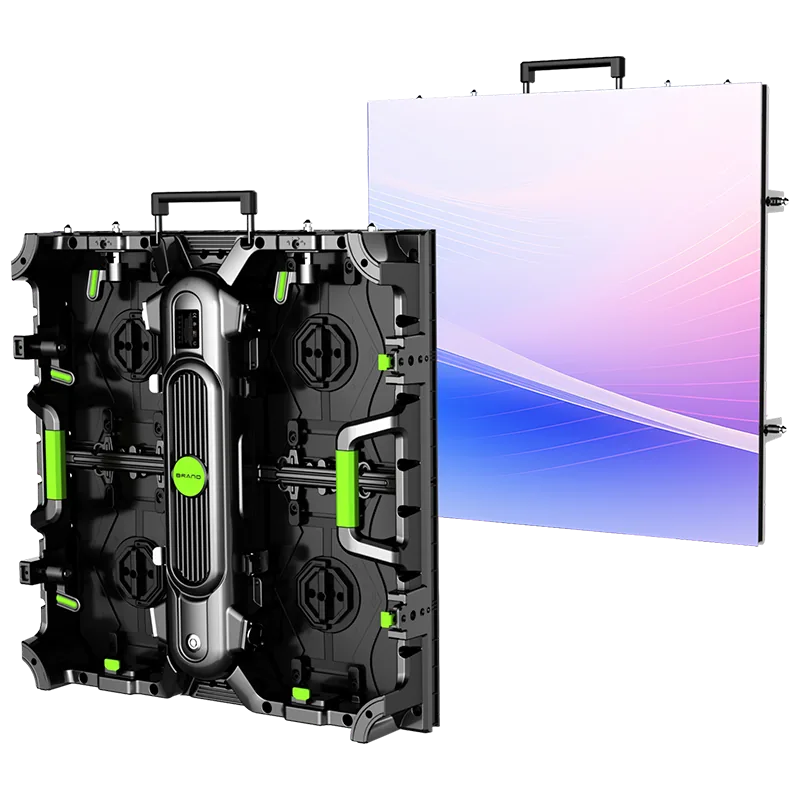

Rental LED Display RL-A series

Pixel Pitch: P1.56mm, P1.953mm,P2.5mm,P2.604mm,P2.976mm,P3.91mm, P4.81mm
  • ✔ ️Cabinet: 500*500mm and 500*1000mm
  • ✔ ️Indoor & Outdoor available
  • ✔ ️Removable Back Cover Box
  • ✔ ️Support curved Installation and right-angle installation
  • ✔ ️Front or rear dual maintenance options for easy access
  • ✔ ️3 Years Warranty and 5% Spare Part
Rental LED Display RL-A series

Customized New LED Display Solutions for You

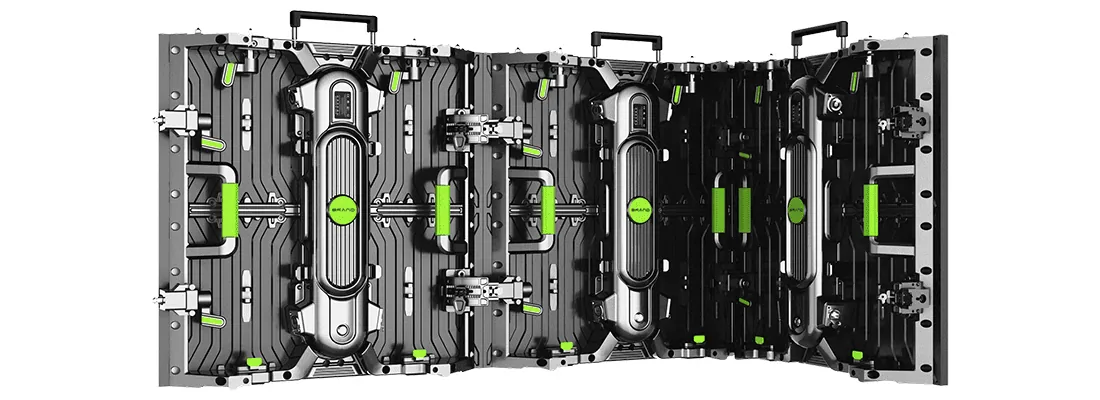

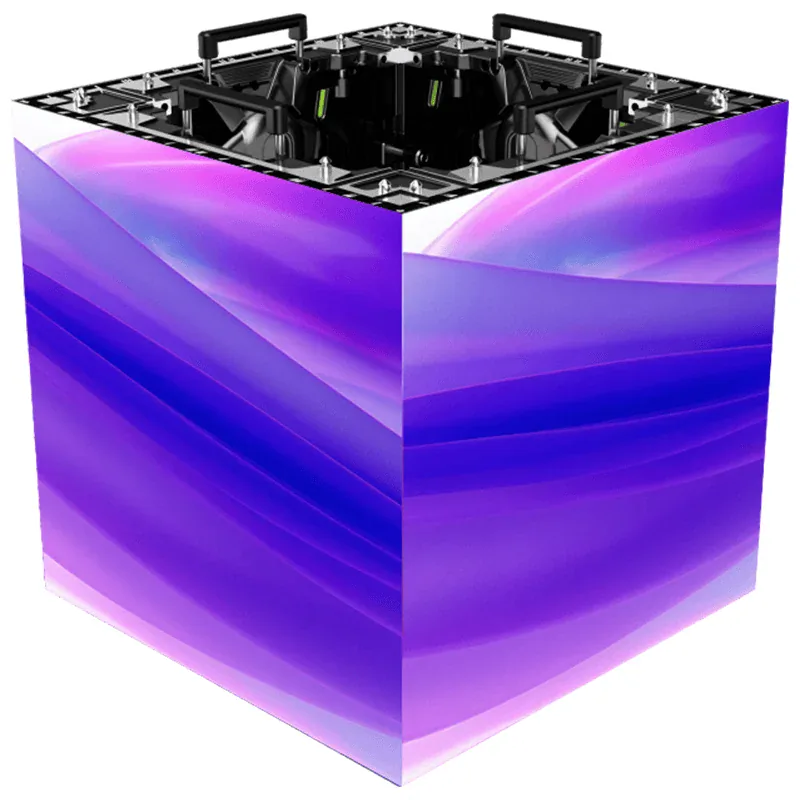

Creative installation

45°corner-cut cabinets can make right-angle splicing and cubic column splicing

Creative installation
Creative installation

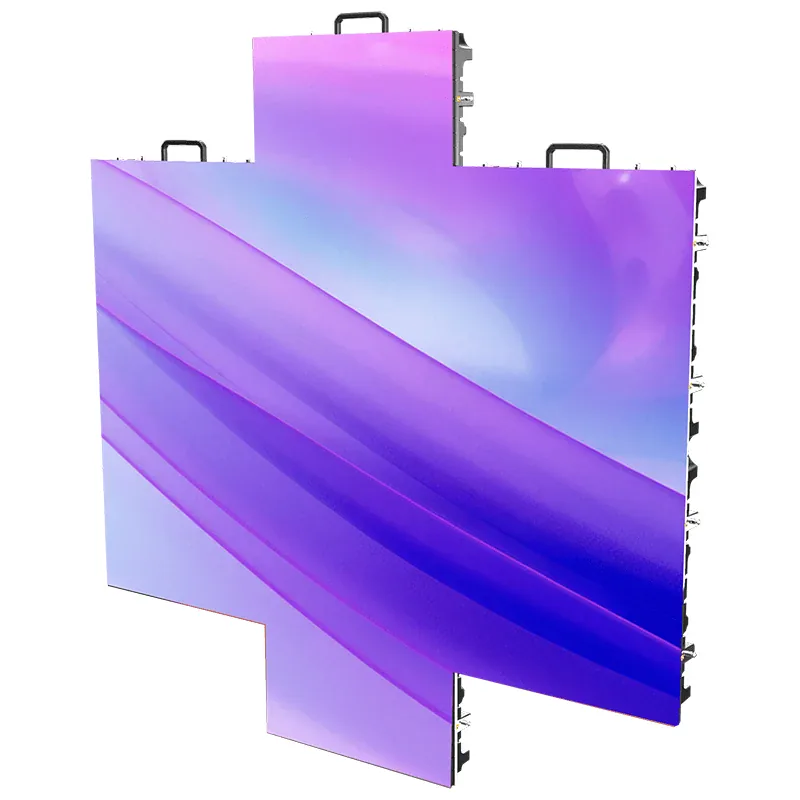

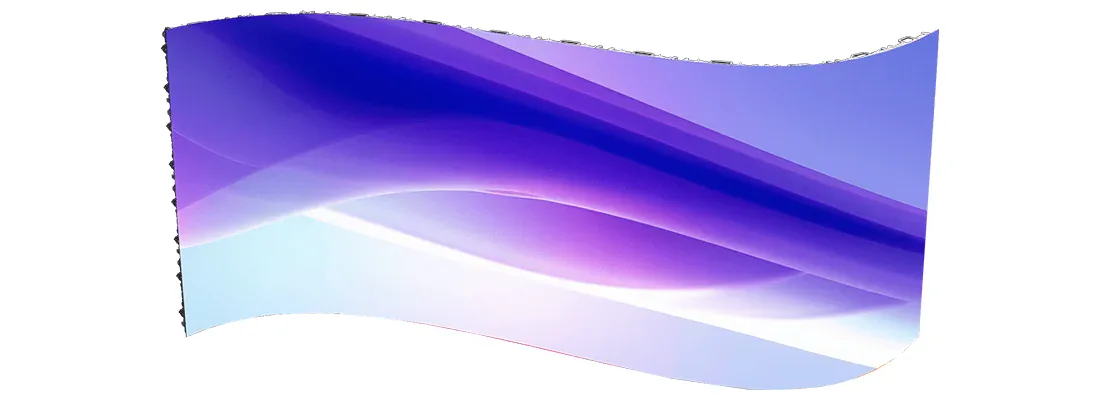

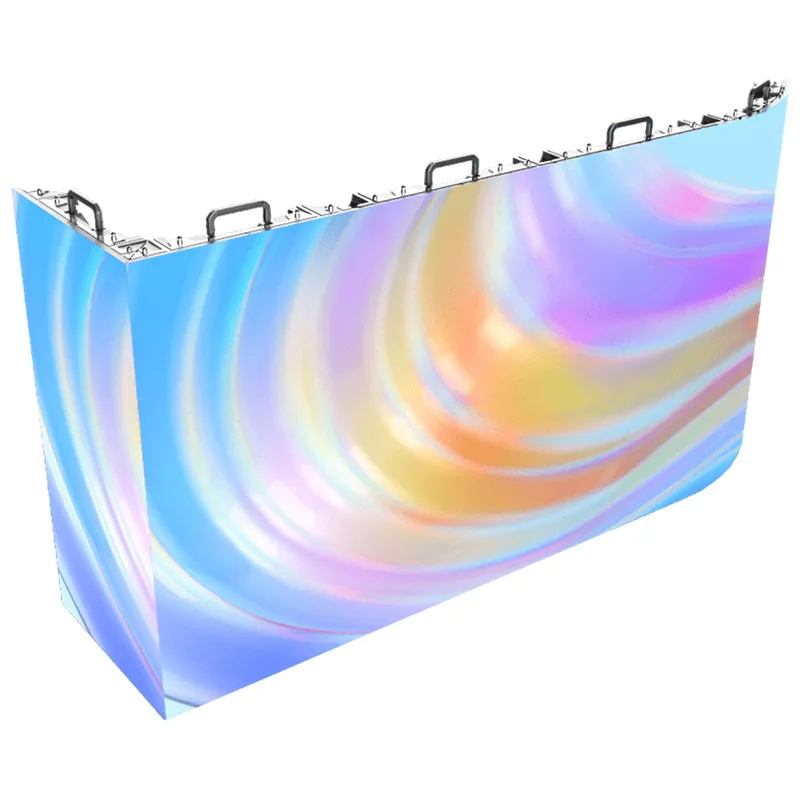

Multiple Shapes

Can combine with Rental RL-A Flex cabinets to make Curve, Right-angle, Concave, Convex shapes etc.

Multiple Shapes
Multiple Shapes
Multiple Shapes
Multiple Shapes

LED diplays we built recently

LED diplays we built recently

SPECIFICATION

Pixel pitch1.56mm1.953mm2.5mm2.604mm2.976mm3.91mm4.81mm
Cabinet resolution320×320 (HxV)256×256 (HxV)200×200 (HxV)192×192 (HxV)168×168 (HxV)128×128 (HxV)104×104 (HxV)
Module resolution160*160dots128*128dots100*100dots96*96dots84*84dots64*64dots52*52dots
LED lifetime100,000h
BrightnessIndoor 800nits, Outdoor 4500nits;
Module size250*250mm
Refresh rate3840-7,680Hz
View angle140° Horizontal / 140° Vertial
Grey Level16 bits
Avg Power consumption180 W/m²180 W/m²180 W/m²180 W/m²180 W/m²180 W/m²180 W/m²
Max Power consumption650 W/m²650 W/m²650 W/m²650 W/m²650 W/m²650 W/m²650 W/m²
Operation power voltage100-240V / 50-60Hz
Operational temperature-10°C to +40°C / 14°F to 104°F
Operational humidity10-80%
IP ratingIP54 for Indoor, IP65 for Outdoor
Dimensions500 x 500 x 80 mm /500 x 1000 x 80 mm(WxHxD)
Weight6kg(500 x 500mm cabinet)/ 11kg (500 x 1000mm cabinet)
MaintenanceFront and back service
